Guide to whole house paint removal and recoating.

Next opening is 2026.

Just completed:
        Keith P.
        Wendy D.
        Wendy H.
        Brian G.
        Andy V.
        Wendy W.

Thirteen most recent
(2017 - 2024)

Click on images
to see the full-
size images for
each project.

Yes, I set up the
scaffold by myself.
It's play.














Restoration document:

  I've been restoring old houses in Minneapolis and St. Paul since
  1976, with an interest in the permanence of the restoration.
  I've done 100 percent paint removal and recoating on scores of
  large houses, using heat guns, working by myself.  I use only
  Sherwin William's Lifetime Coating.  I also perform all the
  carpentry tasks, as only a restoration painter knows how.

  My interior work has for decades included fine enameling by
  brush or airless spray, plaster restoration, custom carpentry,
  wood refinishing, wood floor refinishing, mechanical repairs
  and adjustments on door hardware, full restoration of original
  double-hung window units, and color consultation.

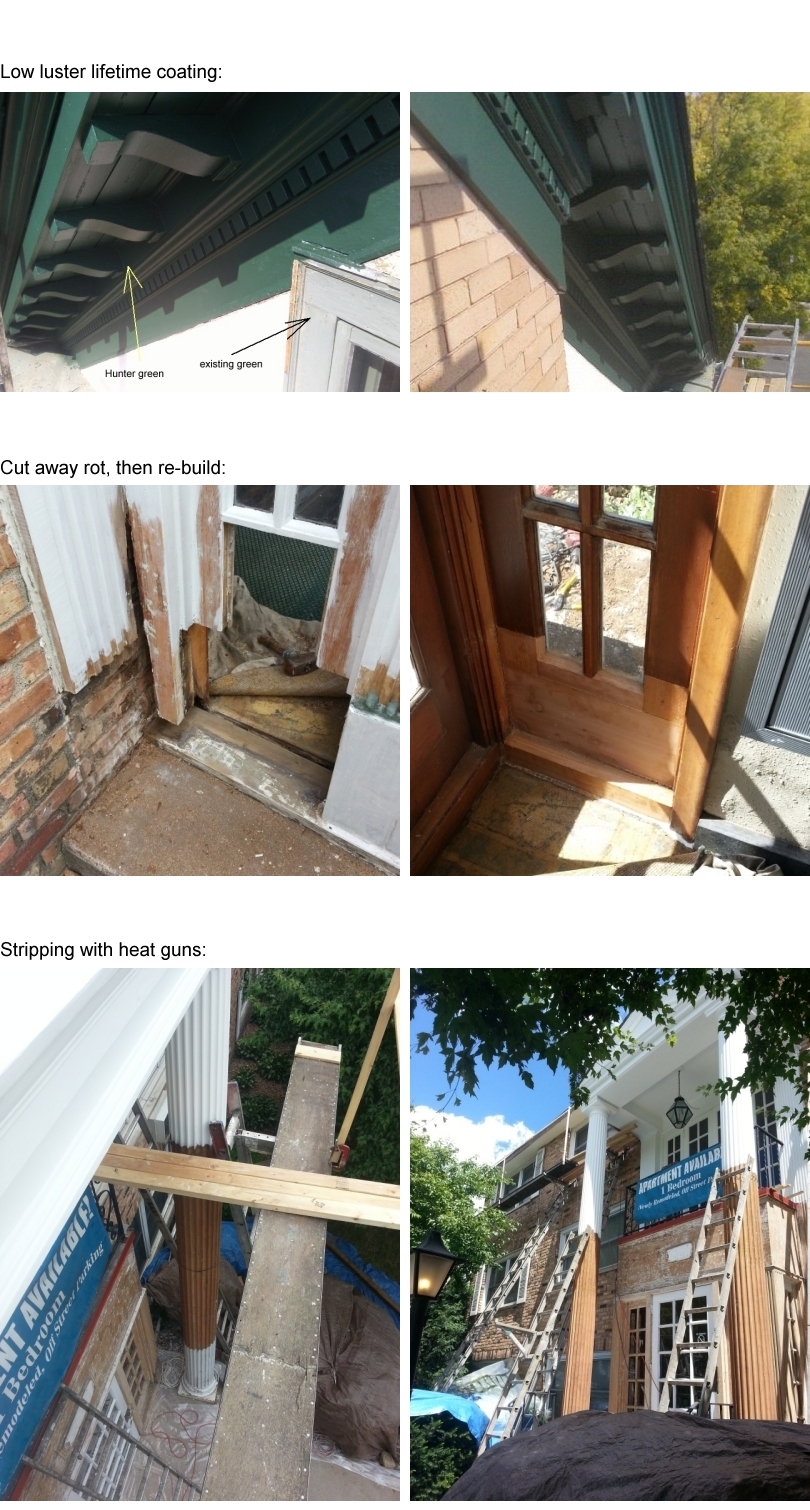

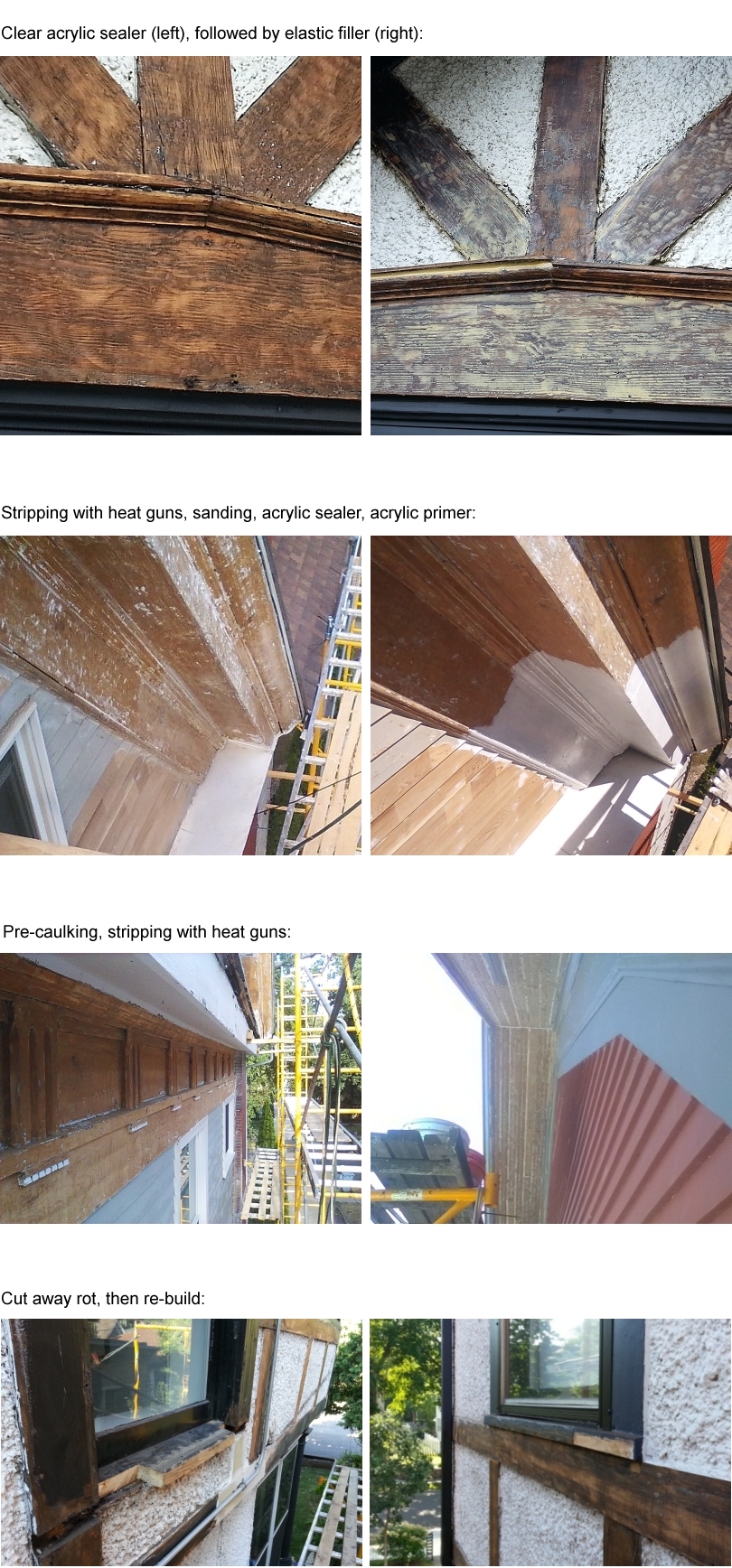

  The photo above and below is my standard fare on exteriors.


Link:  commentary & reviews document
(from back in the days that I used a web host service that
supported cgi script with feedback form capability)

Part I

Tools and techniques for using heat to completely remove
paint from siding and trim.

     1. Ground Cover
     2. Scaffolding
     3. Face Mask and Clothing
     4. Surface Preparation - Heat Guns
     5. Pro-Prep Scrapers
     6. Setting Nails
     7. Hand Sanding
Part II

Materials and techniques for coating bare wood.

     8. Soaker Coat
     9. Caulk
    10. Acrylic Primer
    11. Finish Coats
    12. Encapsulation
    13. Overpainting

Part I Paint removal
1. Ground Cover

    Protecting the health of your customers, their neighbors
    and their pets is the motivation for containing lead paint
    chips and dust.

    Cover the ground with 4 or 6 mil plastic sheeting, cutting
    and fitting tightly around bushes.  Hang nylon tarps over
    bushes, and remove these each night.  Use plenty of ballast
    to secure the ground cover.  After paint removal, slice it
    into manageable sections and roll it up.

    Vacuum up any remaining chips using a wide diameter
    vacuum hose with a tapered attachment.  This will
    prevent clogging the hose with chips and twigs.

2. Scaffolding

    You'll be far more productive working off a plank
    than off a ladder.  Every house scaffolds differently,
    and a lot of thought must be given as to exactly
    how to implement it.  Whether you rent or own your
    scaffolding, you'll find adjustable stands and sidearms
    for planks to be very valuable accessories.

    Scaffolding will also provide a means for hanging
    tarps to help direct chips and dust downwards to the
    ground cover.

3. Face mask and clothing

    The motivation here is to protect yourself with a mask,
    and to protect people and pets you come in contact with
    by changing clothes at the jobsite.

    I've been using charcoal canister breathing filters.
    These seem to be effective, since lead has a definite
    odor when melting old leaded paint using heat guns,
    and these filters block out all such odor.  There
    is a filter called ULPA (Ultra Low Penetration Air)
    which apparently is the ultimate protection against
    lead fumes, but don't look for it at your paint store.
    Eyes can also absorb lead fumes, so you might want to
    consider full face protection.

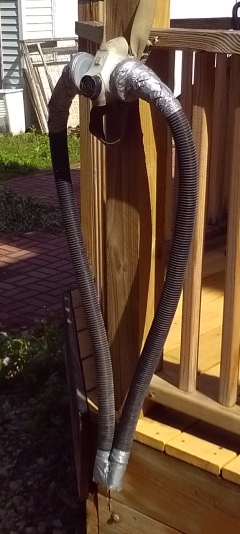

    Beginning in 2022, I've been using a mask with no
    filter.  With duct tape, I've attached shop vac hose
    to a mask that originally used charcoal cannisters.
    With the ends of the hoses dangling well below the
    heat guns (and of course lead fumes rise along
    with the heat), I'm breathing good air:


    Hopefully, you'll do a better job than I do at
    forming a good seal to your face.  Being clean-
    shaven and using Vaseline as a sealant is key.
    I've never bothered, and have high kidney values
    to prove it.  Of course, I've done many hundreds
    of hours of heat-stripping over the course of
    my 47 year career.

4. The heat gun


    I've carefully measured stripping progress using single,
    double and triple heat guns, and consistently find that
    double heat guns strip at exactly twice the rate of single
    guns, and triple heat guns strip at exactly triple the rate
    of single guns.

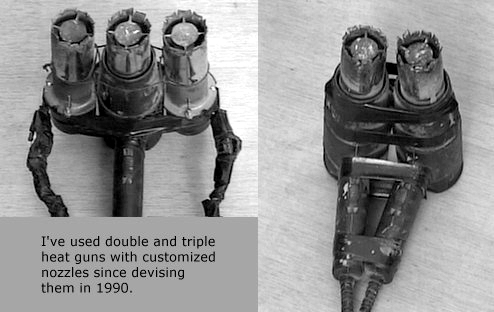

    Triple guns work well for siding.  I buy the twenty dollar
    guns at Menards or Home Depot, remove the plastic casing
    from two of them, and through the use of electrical or
    duct tape, achieve the configuration in the photo.  By
    doing this and by fastening the cords at your waist, you
    will reduce the weight to exactly that of two heat guns.

    A very important modification of the nozzle is to make about
    a dozen snips and flare out the resulting sections as shown
    in the photo.  This will not only spread the heat out more
    uniformly on the surface to be stripped, it will also allow
    you to hold the nozzles right up against the surface and
    keep them there.  The biggest mistake workers make when
    using heat guns is that they tend to keep backing the gun
    away from the surface.  The nozzles should rest on the
    surface 100 percent of the time you are stripping.

    Work in long strips.  Heat spreads through the paint film
    by conduction.  If you work in short strips, you lose this
    advantage of preheating.  You also lose this advantage
    every time you back the gun off the surface.

    Double heat guns work well for trim and siding.  Simply tape
    two guns together.

    Each heat gun requires a separate electrical circuit.  Have
    lots of cord on hand.  Each 1000 watt gun costs eleven cents
    per hour to run.  Thus, a triple gun costs less than three
    dollars per day to operate.

 Fire hazards

    Heat stripping does not need to be a risky procedure.  The
    most important thing is to carefully caulk all cracks,
    holes and gaps between boards before using heat.  Carefully
    inspect under each siding board as well as all other boards
    for gaps, holes or cracks.

    Hidden fires in walls, eaves and under shingles start
    in two ways:

      1. Heat flowing into cracks, holes or gaps.
           There is very dry wood or even dry wood dust in
           walls, eaves, and at the roof line.  This can
           begin to smolder without your knowledge and erupt
           into flames after you've gone home.

      2. Sparks emitted from heat gun nozzles drift into
         cracks, holes or gaps.

           Bits of paint shavings fall into the nozzles and
           come out as sparks, particularly when melting on
           the underside of a horizontal surface, such as a
           soffit, which at any rate is generally recommended

    You can virtually eliminate the risk of fire by using caulk
    to fill in any cracks, holes or gaps prior to heat stripping.
    This is my standard procedure.  Never aim your gun at or below
    any crack, hole or gap.

    One place that cannot be caulked is where the roof shingles
    meet the fascia board.  Stay well away from the roof line
    when heat stripping.  Dry scrape the upper couple inches of
    the fascia board.

    Whenever in doubt, turn the guns down to the low heat setting
    or back them well away from the surface and use a little extra
    scraping muscle.

    Keep a water hose with nozzle attachment and crow bar near
    you on your scaffolding. The hose should be left on at the
    spicket.  (A small fire extinguisher is very handy.)  In the
    event of a fire, do not pry up any board until you have the
    hose in hand.  Prying up a board gives the fire a burst of
    oxygen and sudden life, causing it to spread rapidly.

4.5 Infrared heat (radiant heat) for paint removal

    Another possibility to consider:

    A lightweight infrared heater using just one electrical
    circuit strips paint nearly as fast as my triple circuit
    heat guns, provided there is reasonable continuity of the
    paint film to be stripped.  I began using infrared heat
    occasionally, beginning in 2004, after being alerted to it by
    a reader of this website.  It's been a nice compliment to
    my old standby conventional heat guns.  The drawback is that
    there is a slow initial heat transfer to the substrate,
    meaning it is all the more important to keep the tool on
    the substrate continuously.

    I haven't seen evidence of any fire hazard with it (but
    still use caution), and little or no need of a face mask.

    Why no one thought of this for paint removal 40 years ago is
    hard to understand.  The technology is at least that old.

    There is a commercial model available, but I didn't want
    to spend $465 on the heavy commercial model when I could
    make a lightweight model for about $50 in materials and

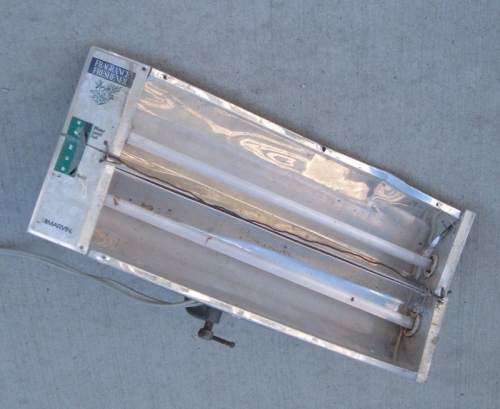

    30 minutes of my time.  I converted an old infrared room heater
    for which I had paid about $50 into a very lightweight paint
    remover.  The replacement tubes are only $10 (and I have yet to
    burn out a tube).

    My tool works as well as the commercial model, based on
    everything I've read about the testing others have done with
    the commercial model.  The working parts in my tool are the
    same as in the commercial model - two quartz tubes.

    Go to wbmarvin.com for a listing of available infrared
    heaters and the $10 replacement tubes.  The model 5460
    Steam 'n Heat at $79.95 looks like the current version of the
    old Marvin heater I had used to make my paint remover.  You
    might also check at Walmart or search online for inexpensive
    infrared quartz room heaters.

    Make your own infrared paint remover and save the weight and
    the high cost of the commercial model.  The commercial model
    (Silent Paint Remover) weighs 4 lb 3 oz.  My infrared paint
    remover weighs just 1 lb 12 oz.  This includes the 12 oz
    clamp being used for the handle.  A lighter handle, such as
    a simple L shaped piece of wood will bring the weight down
    to just 1 lb 1 oz.   Having stripped paint for a living for
    the past 40 years using heat guns, I can assure you that
    you'll appreciate this weight reduction and increased

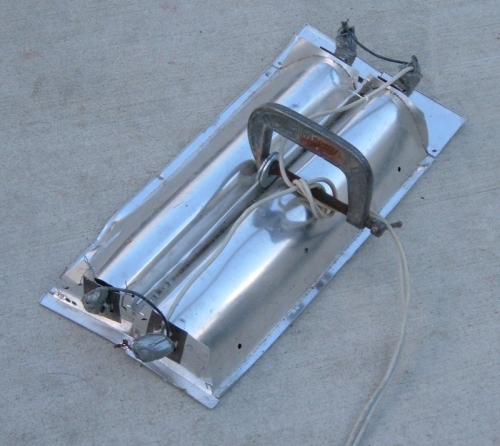

    I refolded the aluminum reflector so that the tubes would
    be spaced 2 1/2 inches apart, which is the average spacing
    of narrow lap siding.

    I also made a single tube model for doing narrow architectural

    Neither the aluminum reflector or the clamp get too warm
    to cause any problem.  I casually lay the tool down facing
    up and running (meaning plugged in - no switch needed) when
    I'm not using it.  You can lay it down on any surface such
    as a wood plank, the ground, or a nylon tarp.

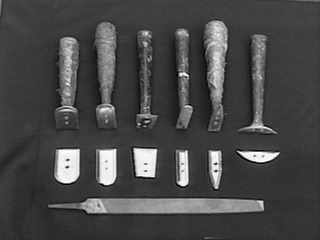

5. Pro-Prep scrapers


    These scrapers will not only greatly boost your heat stripping
    output, they will be your partner in all kinds of dry scraping
    endeavors, from high speed outdoor dry paint removal to fine
    interior wood refinishing projects, including furniture.

    Proper sharpening and use of these scrapers is at the heart
    of indoor and outdoor refinishing projects.  The blades shown
    above will be your primary ones for outdoor work (and most
    indoor work).  For heat stripping, I use the small sized
    handles even with the large sized blades.  This gives greater
    clearance for shavings.

    Buy large coarse grade files by the half-dozen, or by the
    dozen if you have a helper.  A sharp file is the only tool
    to use to sharpen your scraper.  As soon as filing becomes
    a bit of a struggle, throw the file away.


    Place the scraper on a firm surface and file into the blade

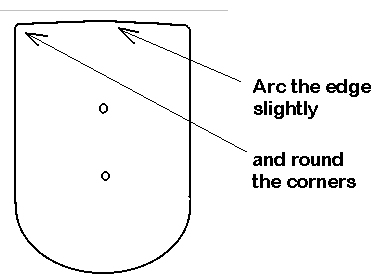

    edge.  File at a 45 degree angle.  Slightly round the corners
    of the large flat blades as shown in the drawing, and for
    dry scraping, very slightly arc the entire edge as shown.
    Rounding the corners will help keep you from making gouge lines
    on the surface you're scraping.  Arcing an edge will give you
    better bite for dry scraping.

    Keep your file with you at all times.  Dry scraping necessitates
    resharpening as often as every half minute.  Heat scraping
    necessitates resharpening about every five minutes.

    Use a variety of motions with your scraper - towards the guns
    with the grain, away from the guns with the grain, perpendicular
    to the grain, and diagonal to the grain.

    Take your time and let the heat do most of the work, or
    you'll end up with gouges on your wood surfaces.  Clean up
    all residue as you go along.

    Heat assisted scraping is usually the best approach even
    when just spot scraping.  It's gentler on the wood and will
    allow you to feather the paint as you go along.
    Retire your blade as soon as it becomes a bit of a chore
    to sharpen it.  (You get to the thicker part of the blade
    as you sharpen it.)  The cost of the files and scraper
    blades is small compared to the cost of struggling with
    expended files and blades.

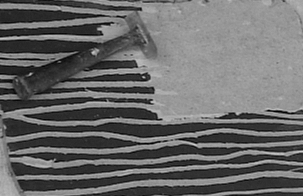

    Here is a great dry scraping tip for fast paint removal,
    especially when the paint is stubbornly attached:  Use the
    round edge of your blade to make channels in the surface.
    Space these parallel channels about 1/3 of an inch apart.
    Then come back over it with the flat blade.  Presto - you
    can strip any thick stubborn paint with very little muscle.
    The only catch is that it sometimes leaves a somewhat crude
    surface.  Be careful of where and how you use this technique.

6. Sinking nails

    Setting nails needs to be done after heat stripping and before

    I found that I couldn't set nails for very long unless I used a

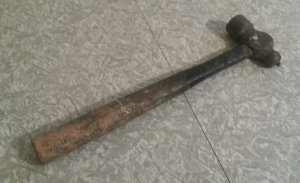

    vice-grips to hold the nail set, as my fingers gave out.  Better
    yet, grind the ball of a ball-peen hammer into the shape of a nail
    set.  Then use another hammer to strike the ball-peen hammer.  You
    can really fly along with this method.  It's been my method for
    the past twenty years.


    The nail set holes are filled with a low shrinkage elastic
    filler after the initial wood priming.  A good general purpose
    filler is CLEAR siliconized acrylic caulk with Durham's
    water putty powder added to greatly reduce the water content,
    which in turn greatly reduces shrinkage.  Two applications are
    typically needed.  Allow some cure time before applying any
    coating over it.  Be sure to use the CLEAR caulk to
    minimize its capacity to absorb moisture during its service

    These days, I actually just use 90 minute Durabond (best
    choice) or even 210 minute powder joint compound mixed with
    the caulk, rather than Water Putty --  a much better buy.
    And as long as you keep the mixture wrapped in plastic, it
    will have an indefinitely long shelf life.  This mixture
    can also be used to fill very large cavities where you've
    carved away rotted wood, sparing you many minor carpentry
    tasks.  Be sure to apply polyurethane caulk, such as Vulkem,
    to the wood surfaces of large cavities prior to applying
    the patching compound to prevent the moisture in the
    patching compound to degrade the wood fibers, as the
    moisture will be present for a long while when making deep

    A less elastic filler is epoxy with Durham's water putty powder
    added.  Though lacking in elasticity, this filler does have the
    advantage of absorbing virtually no moisture even under extreme
    conditions.  This means that it won't release excessive
    moisture during periods of rapid moisture evaporation through
    the paint film, such as when a hot afternoon sun heats up a
    dark colored topcoat.  If that dark colored topcoat has much of
    a sheen, it could blister where excessive moisture tries to
    quickly escape.  However, epoxy fillers are very time consuming
    and fussy to work with.  I gave that method a thorough test
    on three occasions, and finally said "never again" except in
    such case as noted above.
    Sometimes siding boards are so dense and the nail heads so
    large that setting is impractical if not impossible.  In
    those cases the nail heads will need a very heavy spot priming
    with red iron oxide rust primer prior to applying the wood
    primer.  They will also need a very careful finger-wipe
    caulking after the wood primer is applied, or else water will
    surely enter the surface here and cause premature  paint

7. Hand sanding

    60 grit floor sanding paper works well for all exterior hand
    sanding tasks.  Not only is it very long lasting, but it is
    stiff and thus works very well on corners and narrow
    surfaces.  It can also be formed into a stiff rolled
    shape for doing tight concave surfaces.

    For a little more money, you can avoid getting slivers
    (no small issue) by using sponge sanding blocks.  They are
    also long lasting and come in coarse, medium and fine grit.

    If you were gentle with the scraper and let the heat do
    most of the work as you heat stripped, and if you carefully
    scraped off all the residue as you went along, then a good
    stiff hand sanding will complete the stripping task.
    Of particular importance is the rounding of the
    underside of each siding board, as well as the edges of
    all trim boards.

    Blow dust off the wood and out of nail holes with a reversed
    vacuum or leaf blower before priming.

Part II

The Coatings

      *  A conditioning soaking coat.
      *  Caulking and filling.
      *  A primer to complete the moisture seal.
      *  Finish coats primarily for sunlight protection.

      *  Encapsulation


    Start with a thin product with good sealing properties,
    heavily applied in the shade.  Follow with another coat
    with good sealing properties to make sure the wood always
    stays relatively isolated from outside moisture.  Finish
    with a topcoat with good permeability (good breather).
    The topcoat is mostly for sunlight protection.

8. The Soaker Coat

    I use only clear water-borne bonding primers as my
    initial wood conditioner/sealer.  Oil based primers, even
    when thinned out and applied heavily for maximum soak,
    are not the slightest bit elastic and cannot accommodate
    substrate movement, especially when the substrate is
    old dry wood, broad thin lumber, poorly cut lumber,
    plywood or pine.

    Clear water-borne bonding primers have good penetration,
    and have the additional property of being able to stabilize
    old dry cracked wood.  They do this by sending their three-
    dimensionally elastic molecules into the pores of the wood
    and by winding their way through every crack in the wood,
    forming a continuous elastic barrier against water.  These
    primers create success where oil based primers fail.
    The difference is dramatic.

    (Here-after referred to as clear sealer.)

    My current favorite clear sealer is one made by KILZ.

    The product front label includes all the following:

    It is a very thin product, is not expensive, and
    stains the wood nicely -- indication of a strong chemical
    reaction with the wood.

    Be absolutely certain to flood it onto the surface,
    preferably in the shade.  Remember, you get only one
    chance to soak the wood properly.
    The KILZ clear sealer is not for use below 50 degrees
    Fahrenheit.  For temperatures between 35 and 50, you
    could use XIM PeelBond or a mixture of three parts
    XIM Peelbond to one part Sherwin Williams semi-transparent
    (clear base) untinted Woodscapes.  (Woodscapes provides
    urethane content.  Do not increase the amount of Woodscapes
    in the mixture, or you could have adhesion problems
    with the next coat of primer.  If you plan on delaying
    the next coat for more than a day during warm sunny
    weather, just use straight XIM PeelBond or other
    off-the-shelf clear sealer.)

    Dry gray wood indicates surface rot.  Sand it away, since
    the wood fibers are very weak when gray and can fail,
    taking the paint off with it of course.

    Be sure to apply your next coat (a pigmented acrylic
    primer) over the clear sealer as soon as you reasonably
    can, both to ensure good adhesion and to avoid break-
    down of the clear sealer from sunlight.

    For surfaces that are a complex mixture of bare wood
    and existing paint, making spot priming impractical,
    an alkyd primer might be okay when the existing paint
    is alkyd or oil base, but an acrylic primer/sealer
    should be used when the existing paint is latex.
    It's always a risk to apply alkyd primer or alkyd paint
    over latex paint.  The reasons for this are not chemical
    incompatibility but rather mechanical considerations:  You
    don't want a coating which is a very poor breather over a
    coating which is a good breather, as this can lead to
    moisture buildup in the good breathing coat and ultimate
    failure.  You also don't want a coating with little
    elasticity over a coating of high elasticity, as this can
    lead to alligatoring.

9.  Caulking and filling

    The caulking and nail hole filling is performed next,
    allowing you to apply two film forming coats over it.

    My two favorite all-purpose caulks are DAP 35 year clear
    siliconized acrylic and White Lightning 40 year clear sili-
    conized acrylic. The DAP is lower water content, stiffer,
    and can be painted over a little sooner.  Caulk every little
    crack, tiny hole and end joint, however tight the joint may
    You should use a polyurethane caulk such as Vulkem, PL, or
    Sherwin Williams for high movement "architectural joints",
    such as where fascia and crown moulding meet at outside
    corners.  Allow plenty of drying time.
    This is also the point at which filling the nail holes is
    performed.  See section 6 (sinking nails) above.

    Another excellent use for the DAP 35 year caulk is as window
    glazing.  I resisted this method for years because I was
    proud of my traditional glazing skills.  But caulk will
    outlast glazing by dozens of years, will remove far more
    easily should you need to replace a window pane, will save
    a considerable amount of time right up front, and will have
    a nice appearance once you become proficient at
    applying it.  It's been a frequent method of mine for many
    years --  it depends on the particular project.  After
    applying the caulk, run your little finger along it in a
    pushing manner.  Be sure to prime the mullions
    prior to caulking or glazing.  Also be sure to razor away
    existing paint from the window glass prior to priming and
    glazing.  Use the DAP white caulk for glazing.

10. Second coat - The Acrylic Primer
    After caulking you are ready for your second coat of
    primer, as the clear sealer alone is not adequate
    moisture protection for the wood.

    All coatings, from the initial sealer to the finish coats,
    need to be elastic.

    This is especially important whenever the wood has a high
    degree of instability, such as in the case of old dry
    cracked wood, plywood, poor cut wood, broad soft boards,
    or pine.

    A pigmented acrylic primer such as 1-2-3 by Zinnser
    works well over the penetrating coat.  This primer
    will provide pretty good film build and provide both
    moisture protection and the beginning of sunlight
    protection.  This coating needs to be applied heavily
    if it's going to do its work.  Be very careful to not
    brush it beyond what is necessary -- it is more sensitive
    to overbrushing than other acrylic products.  Window sills
    need an extra coat.

    If there is bleeding present after the clear sealer has
    been applied, a coat of 1-2-3, or in extreme cases, multiple
    light coats of 1-2-3, would handle that as well.  Adding
    yellow oxide to 1-2-3 makes it more effective against tannin
    bleeding in cedar.  (The tinting base of 1-2-3 does not
    provide good protection against tannin bleeding.)

    When the wood is particularly unstable, a good option for the
    second coat of primer is a 1:1 blend of the clear sealer and
    the finish paint in the form of Duration satin (discussed
    in the next paragraph), a far more elastic coating than 1-2-3.
    (Caution:  Do not mix 1-2-3 and Duration paint together.  You
    will get clay.)

11. Finish Coats

    Sherwin Williams exterior finish coats

    I use Sherwin Williams Duration Lifetime Coating exclusively.
    The best Sherwin Williams paints have always had the best
    ingredients in the optimum percentages.

    Sherwin Williams Duration Lifetime Coating is a higher build,
    better bonding, more flexible coating than previous premium
    acrylic coatings and is the ultimate finish coat for exterior

    Duration performs well down to 35 degrees.  I do not rely on it
    for general bare wood priming, since most situations call for
    better penetration, sealing or stabilization.  Disregard any
    information on the label or advice you get from the paint store
    regarding the use of Duration or any other paint as a primer.
    A fully pigmented product such as house paint cannot possibly
    penetrate wood cells or enhance wood fibers the way a dedicated
    primer can.  It is no wonder that I've seen other painters'
    coatings fail when they've used Duration as a wood primer.

    Duration can be used as a two coat system over the clear sealer,
    but using 1-2-3 as the next coat over the clear sealer will
    provide better moisture protection, as well as bleeding
    protection as mentioned above.  (Also see the final paragraph
    of section 10.)

    I use eggshell finish latex for exteriors whenever I can,
    as opposed to flat, semigloss or even satin finish latex.
    Eggshell finishes have just the right resin/pigment ratio to
    allow the paint to both breath and shed water.  Ideally, the
    topcoats should breath better than the primer(s) in order to
    avoid moisture trapping.

    This means that I typically mix satin Duration 1:1 or 2:1
    with flat Duration to achieve an eggshell finish.  The
    satin finish is particularly risky when using a dark
    color, as a hot afternoon sun can cause it to blister.
    It's unpredictable.  (2018 update:  Duration now comes
    in an eggshell finish.  It's called low luster.)

    There is a strong tendency for people to overbrush latex
    coatings and to spread the coating too far.  One goal is
    to apply a film of protection on the surface, not to
    just color the surface.  Another goal is to transfer the
    acrylic substance from the can to the surface in a
    uniform film with as little disturbance of the resin as
    possible - this is what insures long term film service.

    There should be a minimum of three coats of film forming
    product everywhere (except well shaded soffits).  This
    might take the form of a clear sealer followed by two coats
    of Duration, or a clear sealer followed by 1-2-3 acrylic
    primer, then Duration.
    Anything less does not adequately seal the surface.
    When moisture penetrates into the wood often, the surface
    wood fibers lose their integrity and the film fails at
    the wood surface, ultimately as the result of hydrostatic
    pressure acting on what has become a poor bond.

    A four coat system is recommended:  the clear sealer,
    1-2-3, then two coats of Duration.  Adequately sealing
    the surface is important even for short term success.

    Soffits require less protection.  For well shaded soffits
    that have only a small percentage of bare wood exposed
    after scraping, you could actually get by with just a one
    coat process: mix one part Penetrol or Emulsa Bond with
    three parts acrylic finish coat.  This gives the coating
    better sealing and surface wetting properties.  (Penetrol
    mixes with latex paint just as well as Emulsa Bond and
    provides the same long term performance.  I always have
    Penetrol in stock and therefore use it exclusively.)

    To review: I favor the all acrylic systems even when the
    existing substrate is oil based.  I rely on the clear sealer
    as a whole house initial primer, over bare wood of course,
    but also over chalky paint (brush or back-brush) and checked
    paint (if sound).  It binds any residual dirt on the surface
    that pressure washing leaves behind and even helps rejuvenate
    the surface of an old acrylic paint film.

12. Encapsulation

    Encapsulation can be regarded as stabilizing a substrate,
    whether the substrate is bare wood or old paint.

    Problem boards

    Boards with horizontal hairline cracks as well as larger
    cracks need to have a high stretch caulk troweled into their

    There can be over a hundred such areas on a house with these
    types of lumber problems, and replacing all such boards can
    be cost prohibitive, especially when dealing with fascia
    boards and crown molding, the very boards that most
    frequently have long running cracks.

    Old checked paint

    This section examines the concept of layering coatings
    for optimal encapsulation of old checked paint.

    I use the system described below primarly in the
    following areas:

      The siding and trim at the first floor level on the
      front of a house that is well protected by a porch

      Low soffits and low frieze boards that are well
      protected by soffits.  This typically means frieze
      boards on both the inside and outside of a porch.

      Siding and trim at the first floor level on the north
      side of a house.  (North sides degrade more slowly,
      and the first floor level is the most visible, being
      at eye-level.)

    For checked paint in other areas (more exposed to
    weathering and/or less visible), I simply use a lower-
    stretch paint than Duration; typically Sherwin Williams
    A-100.  See below.

    First of all, one needs to learn to recognize the difference
    between stable and unstable old paint.  Generally speaking,
    if the paint is not separating from the substrate or even
    hinting at it, then the paint is stable, even if heavily

    But checked paint can become unstable if not encapsulated

    It's desirable to use a very elastic final coat over the
    checked paint, or else the checking will transmit through
    it in time.

    Unfortunately, a coating which is sufficiently elastic to
    accomplish that might also pull the old coating loose from
    the substrate through repeated expansion and contraction
    with temperature changes.

    Applying an oil based primer over the checked paint
    prior to an elastic coating will not solve the problem,
    because the elastic coating will still do work on the checked
    paint by virtue of transmitting its force very effectively
    through the relatively inelastic coat of new oil primer.

    What to do?  The secret is in using a go between coating
    that is not elastic enough to flex the checked paint loose,
    but elastic enough to force the elastic topcoat to do much
    of its work on the go between coating.  The flex force of
    the elastic topcoat is largely dissipated in the go-between
    I find the definition of the paint film attribute "elongation"
    to be misleading:  A paint film with an elongation factor
    of 1 means it will stretch to 2 times its own length before
    tearing.  An elongation factor of 2 means it will stretch to
    3 times its original length before tearing.  So I use a term
    called "stretch factor" to distinguish it from the industry
    defined term - "elongation", even though it's the exact same

    A coating with a stretch factor of 1 means that the coating
    will tear upon trying to stretch it beyond its original length
    of 1 unit.  A coating with a stretch factor of 2 means it will
    tear when stretched to double its original length.
    Here are some examples among quality exterior coatings:
    Sherwin Williams Superpaint flat      1.3
    Benjamin Moore Moorlife flat          1.5
    Benjamin Moore Moorgard eggshell      1.5
    Zinsser 1-2-3 acrylic primer          1.6
    Sherwin Williams Superpaint satin     2.1
    Sherwin Williams Duration flat        2.5
    Sherwin Williams Duration satin       3.1
    These numbers are approximate values, based on averaging
    my test samples using white or light colors.

    I've had great success in long-term encapsulation using
    paint or primer with a stretch factor of between 1.3 and
    1.6 as my buffer coat, but prefer the low end of this range.
    It must be applied heavily or in two coats (1.3, then 1.6)
    to be most effective.  Start with a light coat of the clear
    sealer, especially if there is any bare wood mingled with the
    checked paint.  It's function is to seal the wood and bind
    any dust on the surface.  It's thin film will not play a role
    in the stability of the checked paint one way or the other.
    (It has a stretch factor of 1.5.)
    A light coat of Duration is of course my choice for the
    final coat over the buffer coat(s).

    I rarely see failure upon returning to inspect old job
    sites where this method was used.

    There are also (dubious) heavy bodied encapsulation coatings
    available.  Take a look at their elongation properties before
    committing to their use.

13. Overpainting

When paint separates from the substrate, there is always
hydrostatic pressure involved.  This is the pressure of
water evaporation.  To reduce the possibility of this occurring,
you must use coatings with a favorable ratio of adhesion to
permeability, you must apply them in the correct order, and
you must not overcoat a surface.

A heavy build up of coatings over the years can work against
you in two ways:

When the permeability of the overall coating system reaches
a certain low point, the film will separate at the weakest link,
usually at the surface of the wood, especially if the initial
primer did not penetrate deeply enough into the wood or did not
enhance the wood fibers.

Also, as the total thickness increases, the elasticity decreases,
leading to cracks in the film.

Which is the biggest problem is hard to say.

To review what was said earlier about primers and topcoats:

Start with a product with good sealing properties, heavily
applied in the shade.  Follow with another coat with
good sealing properties to make sure the wood always stays
relatively isolated from outside moisture.  Finish with a
topcoat with good permeability (good breather).  The topcoat
finalizes the moisture protection and provides sunlight

When encapsulating old paint, there is risk of creating
hydrostatic pressure beyond what the old coating can resist,
but that can sometimes be a good risk management decision,
considering the cost of paint removal.

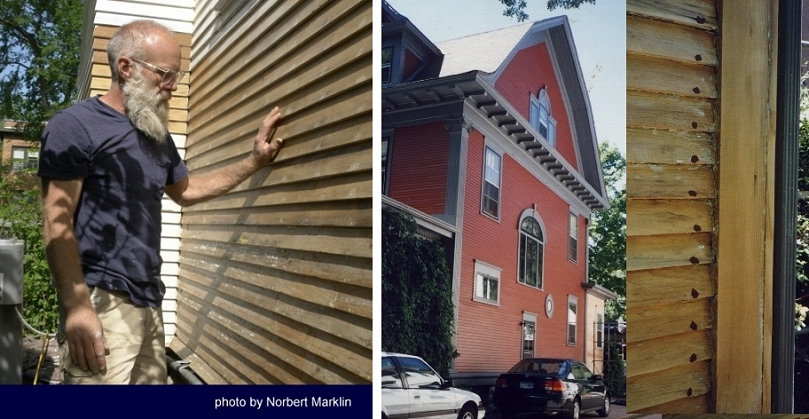

On some projects, I've removed and reinstalled all
the siding back side out, running each piece through
a table saw to remove the paint from the bottom edge.
I hand sand or power sand the face to freshen it.  The
total time required is about the same as for stripping
with the triple heat gun as described above.  If you are
handy with a flat pry bar, you can remove all the siding
with no damage.  It's important to grind down your flat
pry bar until it is very sharp and has a very slim profile
over the first couple of inches.

Reversing the siding works only if your house has
vertical corner boards, or if you are willing to
install corner boards.  Otherwise the bevels at the
corners will be backwards.  I once converted a house
to vertical corner boards and it went very smoothly.

Mark the locations of each siding board on the adjacent
window frame or corner board prior to removal.  Scrape
the edge of the window frame or corner board clean of
paint so that you can pry off the siding boards without

Work from the top down.  Use a specialty pry bar to
extract the nails from the top two or three siding
boards.  It is smooth sailing the rest of the way.

Page updated on June 15, 2024.

contact: Roger Luebeck roger@rogcad.com
